2002 Hinckley 36 Picnic 36 EP

Additional
HULL and DECK

• (2017) Awlcraft 2000 Flag Blue Awlgrip topsides, white boot stripe
• (2017) Bottom stripped, three barrier coats applied, green bottom paint
• The Hull is Kevlar/E-glass hybrid and balsa core, SCRIMP® with Vinylester resin
• Deck and cockpit are E-glass and balsa core, molded with polyester resin
• The deck and cockpit sole have a molded-in nonskid pattern, cream colored
• The heavy-duty fiberglass swim platform has teak insert treads, handhold bracket and half round; folding stainless steel telescoping 3-step swim ladder
• Rounded, tapered, varnished teak toe rail with Hinckley profile
• Varnished teak eyebrow molding around cabin top
• (4) Opening elliptical ports on house sides
• Hinckley pilothouse mast with spotlight and 24" Radome are painted to match deck
• Low-profile opening aluminum hatches with screens
• Stainless steel half round on fiberglass-molded rubrail
• Custom stainless steel bow rail
• Custom Hinckley 316L stainless steel bow chocks
• Bow, stern and springline 316L stainless steel mooring cleats
• Padeyes with chafe strips to hang fenders
• Bow, stern and springline 316L stainless steel mooring cleat
• Flush sockets for bow burgee staff and ensign staff

COCKPIT

• Cockpit entry via teak side boarding step and a stainless steel cockpit step with teak treads that mounts port or starboard, with stainless steel brackets
• Varnished teak cockpit coaming
• Cockpit sole has a molded-in non-skid surface and direct overboard drainage scuppers
• Numerous cockpit lockers with varnished teak doors, and storage bins
• Seating is available aft, as well as on the Picnic EP engine box that includes an integrated wet bar/cooler and an aft-facing cushioned seat
• Seats are finished matching Sunbrella striped teal fabric
• The "galley-up" wet bar includes a stainless steel sink with foldaway faucet and hot and cold pressure water, insulated self-draining icebox, and a storage drawer
• The entire engine box/wet bar and seat is hinged on the aft end and has an electric air-assist lift for easy access to the engine

AFT COCKPIT

• Forward-facing full-width settee has back and seat cushions (2021)
• Aft settee includes two hinged lids under the cushions to allow access to removable storage tubs and to below-deck pumps and batteries
• Molded-in port and starboard cup holders

PILOTHOUSE

• Insulated white overhead has (4) acrylic opening hatches
• Additional illumination is by rheostat-controlled overhead low-voltage halogen lights
• (4) Pilothouse windows include: (2) sliding side windows and (2) fixed forward with heavy duty, self-parking, intermittent windshield wipers and fresh water washers
• Varnished teak pilothouse interior, including dash. There is a teak locking companionway door
• (2) Varnished teak handrails are under the aft ends of the pilothouse cabin top and a varnished teak handrail is on the aft end of the pilothouse
• Drop curtains with windows provide a fully-enclosed pilothouse
• Interior window sun covers for all four pilothouse windows

AFT PILOTHOUSE

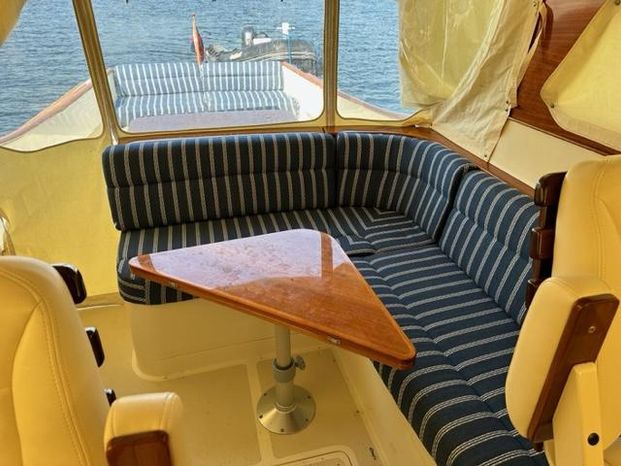

• The extended pilothouse roof shades additional seating with a L-shaped settee with varnished teak shelf rim to port that faces inboard and forward
• Back and bottom settee cushions covered in Sunbrella (2021)
• There is locker stowage beneath the settee
• Varnished teak table with removable pedestal can be lowered to form a sheltered, comfortable "kid-sized" berth. The tabletop is hinged to fold to a smaller triangular table allowing use flexibility.
• Two of the four opening hatches with screens are over the aft pilothouse area.

FORWARD PILOTHOUSE

• Pompanette pedestal-style ladderback helm and passenger chairs are height-adjustable and can swivel to face aft. They are finished in UltraLeather and have stainless steel footrests (2018)
• V-groove pilothouse ceiling made by Hinckley, lighting, Oceanair shades and teak window trim (2018)
• (2) Hella fans in forward outboard corners
• The forward port passenger area has a varnished teak integral handrail/cup holder on the forward bulkhead

HELM STATION (to starboard)

• Varnished teak instrument pod
• Stainless steel 14" steering wheel with varnished wood rim
• Hinckley JetStick
• Engine gauges
• Top-opening locker with chart storage to port
• 12V outlet in chart pocket and remote switches to spotlight
• (2) Cup holders

ENTERTAINMENT SYSTEM

• Alpine AM/FM receiver with 6-CD changer, amplifier and fade control
• (4) Alpine speakers: (2) forward bulkhead and (2) in pilothouse

ACCOMMODATIONS

From the Pilothouse forward and down the companionway steps are the interior accommodations below:

• Galley - To port
• Head - Starboard
• Sleeping area - Forward
• Satin-varnished mahogany finished interior includes sheathing
• Varnished teak and holly cabin sole has a custom cabin sole cover
• Opening overhead hatch and (4) opening ports below (including head and galley), with removable screens
• Interior window sun covers for the pilothouse
• (5) Frigast stainless steel 12V lamps on rheostats provide plenty of interior lighting

GALLEY

The Corian green countertop has a stainless steel sink with Grohe fixtures, spray nozzle, and hot and cold pressure water. The LPG stove with custom stove cover/cutting board is set in the countertop forward. The 12V Adler Barbour refrigeration is mounted aft of the sink and is accessed by a lift-up top.

The Galley forward is separated from the vee-berth area with a pantry locker with louvered door, and several shelves.

Galley Equipment Includes:

• Remote propane shut-off
• 12V outlet
• AM/FM/CD stereo system(CD unit replaced with Bluetooth head unit)
• Additional storage is provided outboard, as well as under the galley sink
• Adler Barbour refrigeration – 12V cold plate refrigerator in a self-draining box
• Force 10 two-burner stove with remote propane shut-off and cover
• GE microwave oven (110V)
• Stainless steel sink with Grohe fixtures, sprayer and pressure hot and cold fresh water system
• Pull-out under-counter garbage receptacle
• (3) Pull-out drawers
• 110V outlet
• 12V outlet
• Opening port with screen

HEAD

Opposite the galley, starboard of the companionway, with a solid mahogany door

• White porcelain sink
• Grohe faucet/hand-held shower with additional custom wall holder provides hot and cold pressure water
• Vacuflush marine head
• Mirror on the forward bulkhead
• 110V outlet
• Opening port with screen
• Hella fan
• Storage is provided by mahogany lockers above and outboard the vanity, a mahogany drawer beside the marine head, and a locker under the vanity

VEE BERTH AREA

Double berth is formed when using the adapter with cushion

Cushions upholstered in striped Sunbrella material

This area has excellent storage:

• Under the V-berths with easy access drop-front doors
• In the forepeak behind a louvered mahogany door
• Hanging locker to starboard just aft of the V-berth

Other features include:

• (2) Opening ports with screens
• (2) Hella fans
• (2) Stereo speakers - mounted port and starboard on forward bulkhead

ELECTRICAL SYSTEM

• 12V DC electrical system
• (3) 12V batteries (2017)
• 80 amp battery alternator
• Heavy duty battery parallel switch also allows emergency starting
• 110V 30 amp AC electrical system with Cablemaster shore cord system
• 110v shore power inlet, relay and shore power cord
• Heart Freedom 10 inverter
• AC electrical panel and DC subpanel
• Low-resistance, heavy copper and zinc anode electrical bonding system

ELECTRONICS and NAVIGATION EQUIPMENT

• (2017) Raymarine G series 165 Glass Bridge MFD chart plotter, GPS, Radar, AIS
• (2017) Raymarine Autopilot
• (2017) Raymarine speed, depth
• (2017) Raymarine radar scanner painted cream to match deck
• (2017) Raymarine VHF
• (2018) Fusion stereo with JBL speakers in pilothouse and cabin
• (2017) antennas
• 4" Ritchie compass
• Spotlight (repainted in 2017)

ENGINE and MECHANICAL EQUIPMENT

• 2002 Yanmar 6LYA-STP 440HP diesel engine, FWC, meticulously maintained,
• Cruising speed: 22 knots; Maximum speed: 30 knots.
• Hamilton 292 Jet Drive
• Engine box lift replaced (2018)
• Engine box insulation (2018)
• Throttle and Shift cables (2021)
• ZF IRM220PL transmission
• 12V 7” bow thruster with battery
• Hinckley custom JetStick control system is integrated with the bow thruster
• Yanmar fuel filter/water separator
• Tachometer with engine hours gauge
• Fuel, oil pressure, and water temperature gauges
• High engine temperature alarm
• Low oil pressure alarm
• Water jet nozzle direction indicator
• Wet exhaust muffler system
• Oil transfer pump for engine and transmission
• Manual hydraulic steering pump
• (2) Electric 1500-GPH 12-volt bilge pumps with float switches
• Whale emergency bilge pump mounted in cockpit locker
• Cockpit shower with mixing valve
• (2) 2.5 lb. Dry chemical fire extinguishers
• 27-Gallon aluminum holding tank with overboard discharge
• 12V in-line automatic sump pump
• Engine room sound insulation (2018)
• Engine box forced air blower
• 6-gallon Stainless steel hot water heater – shore power and engine heated

DECK EQUIPMENT

• Muir electric windlass with (2) plow-type 20 lb. anchor, 15” chain, 150' anchor rode and stainless steel bow roller. The windlass can be operated from the helm station or a handheld remote at anchor locker
• Bow varnished burgee pennant staff
• Stern-mounted varnished teak ensign staff
• Dock lines
• Fenders
• Deck shower/water outlet with hot and cold mixing valve
• Bell
• Life jackets
• Hand-held flare kit
• 12-volt trumpet horn with switch at helm
• Masthead and running lights
• ACR masthead mounted spotlight with helm-mounted electric remote control
• Cockpit lights
• (2) AFI wipers
• Trident LPG propane shutoff
